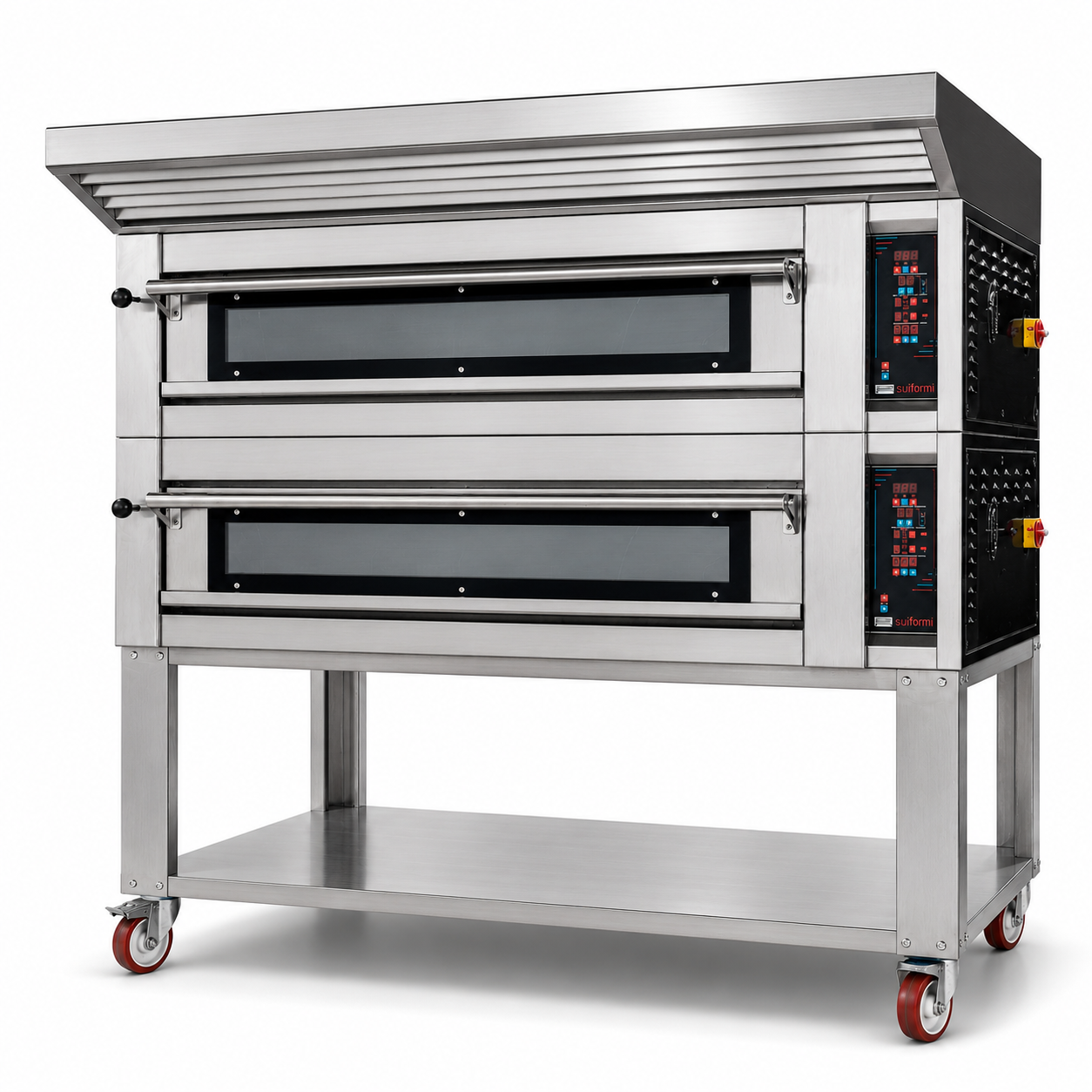

Sud Forni Zaffiro ZN-105E Twin Deck
The Zaffiro ZN-105E is a modular electric deck oven for round pizza. This configuration comprises 2 separate oven modules, with 9 pizzas up to 33cm diameter per deck, 18 pizzas in total. Each deck has its own controls, so you can manage each baking chamber separately.
The modular construction lets you add capacity later. Refractory baking surfaces and independent top and bottom heat control help you adjust the bake to suit your product.
Specifications
| Model | ZN-105E |
|---|---|
| Decks | 2 separate modular baking chambers |
| Capacity | 9 pizzas up to 33cm diameter per deck, 18 pizzas in total |
| External size per module (W × D × H) | 150 × 125 × 45cm |
| Oven body stack (W × D × H) | 150 × 125 × 90cm, excluding hood and stand |
| Internal chamber per deck (W × D × H) | 105 × 105 × 15cm |
| Maximum power | 12.5kW per deck; 25kW total |
| Indicative consumption | 8.5kWh per operating hour per deck; 17kWh per hour total. Actual consumption varies with use. |
| Weight | 230kg per module; 460kg total, excluding hood and stand |
| Maximum temperature | 500°C |
| Electrical supply | 400V three phase + neutral. Confirm the required supply and connections before ordering. |
| Stand height including castors | 84cm, including 20cm castors. Calculated from the confirmed overall height |
| Canopy height | 22cm |
| Overall height with stand and canopy | 196cm including castors, excluding flue outlet and ducting |
| Depth including canopy | 155cm, allowing for the 30cm canopy projection |
Features
- Separate stackable modules with independent digital controls.
- Refractory baking floor and ceiling for heat retention.
- Independent top and bottom heat adjustment, with economiser control.
- Optional biscotto clay baking floor, approximately 4cm thick, available on request.

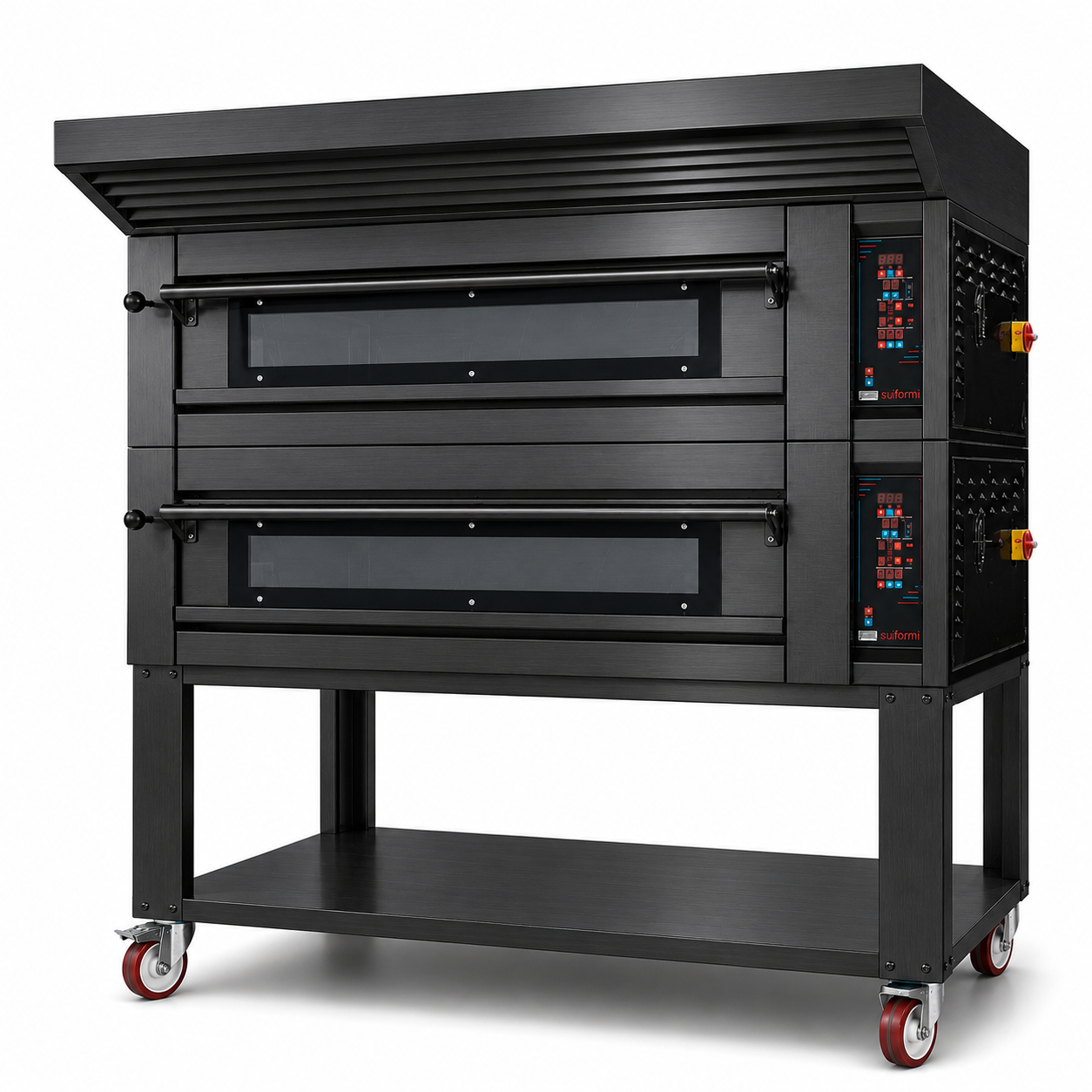

Configuration: Price covers 2 oven modules. Hood, stand, extraction ducting and fan are optional. Images represent the large width group and show optional accessories. Confirm your preferred finish when ordering.
Delivery:
- In-stock items: Next-day kerbside delivery is available at checkout.
- Backordered items: Usually shipped directly from the manufacturer. If you’re not ready to accept delivery when your order is ready to ship, we can arrange for it to come to our York premises first. An additional delivery charge may apply when we send it on to you.
- On-site installation and setup are available on request.
Warranty and Support:
- Peace of Mind: Comes with a 12-month parts and labor warranty, with parts-only coverage for overseas exports and Scottish highlands.
Dimensions of some ovens have changed over the years. If you're adding a deck to decks you've purchased previously, please get in touch with dimensions before placing an order.
