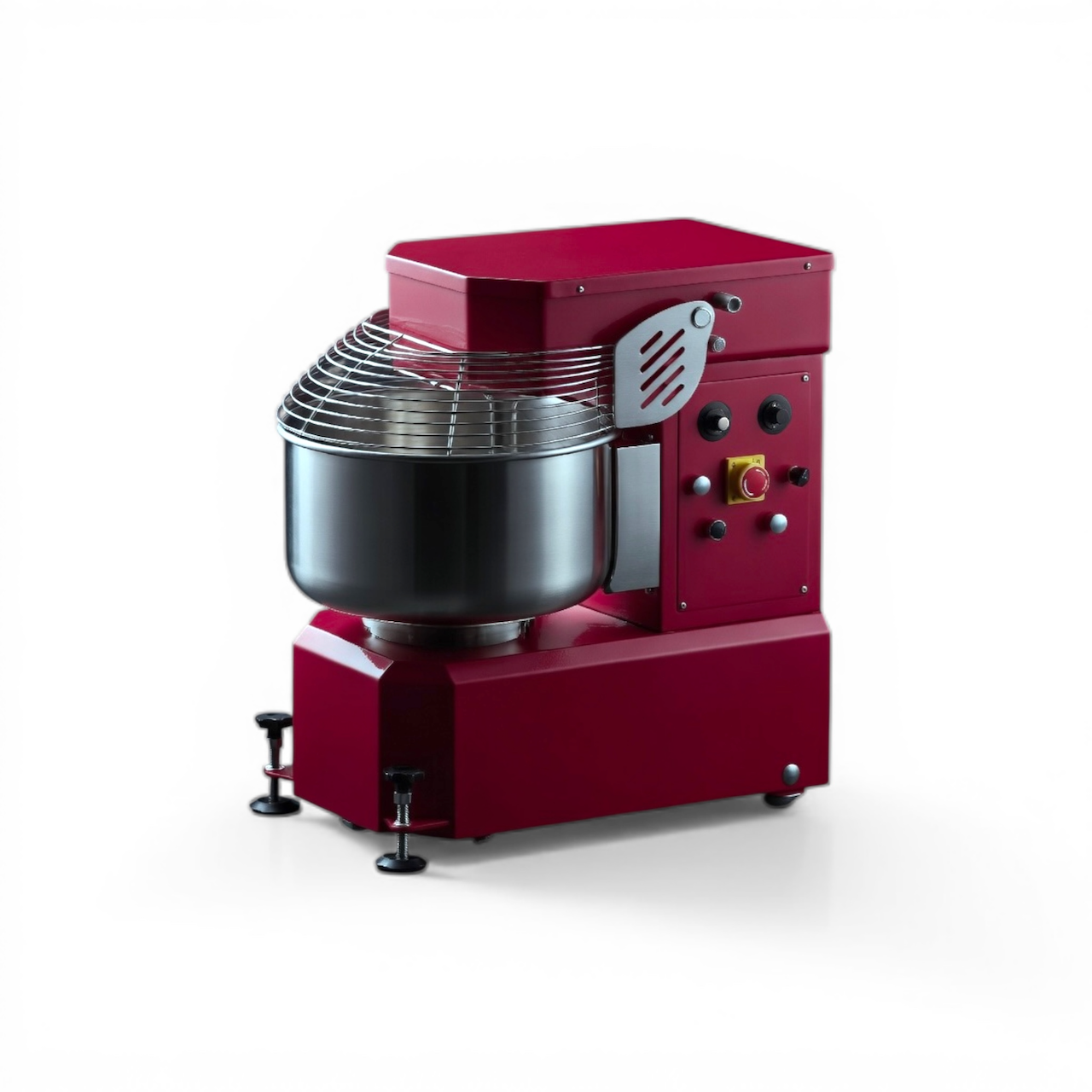

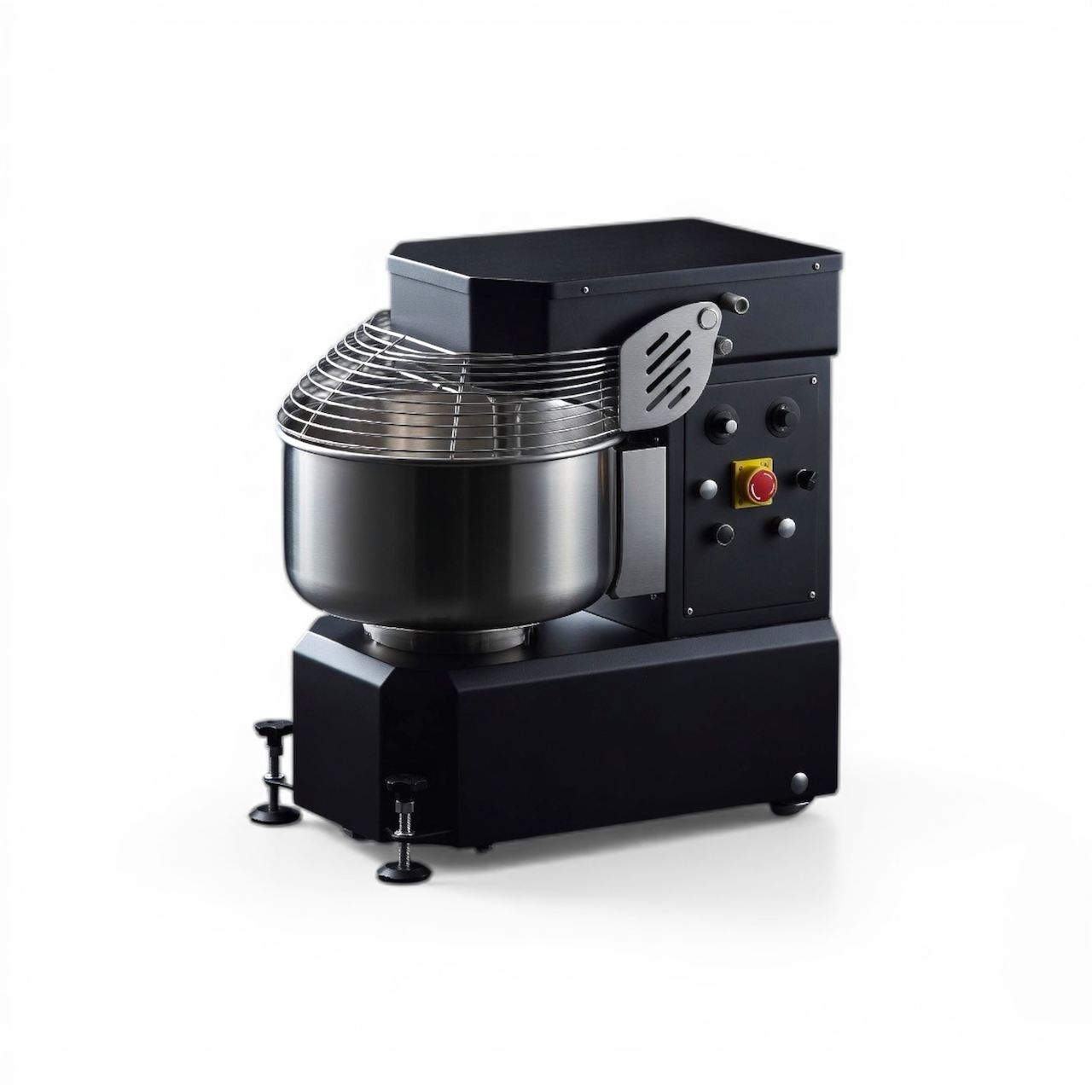

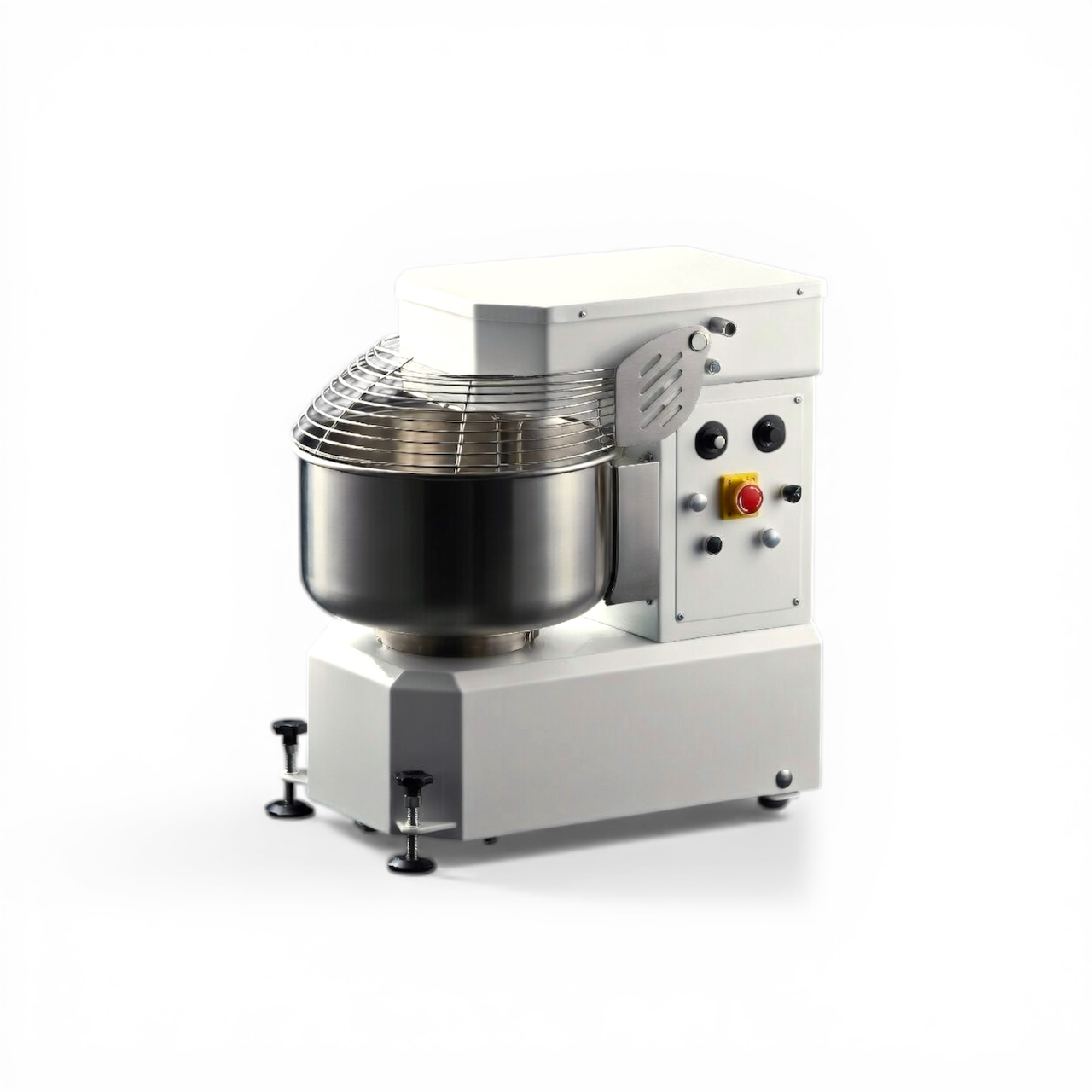

Sunmix Flat Line 30 & 40kg Spiral Dough Mixer

Sunmix Flat Line Spiral Dough Mixer

The Sunmix Flat Line range has arrived. Effectively a Top Line with a flat lid and side-mounted controls, bringing it in at under 85cm tall so it fits beneath a counter and also bringing it in under 13amps so it can run on a 13 A supply (plug not supplied). Ideal for smaller kitchens.

Designed for bakeries and pizzerias running consistent production, particularly doughs above 60% hydration. Built for reliability in daily use.

Key Specifications

Dough Capacity:
30kg max, 3kg min, max 16kg flour
40kg max, 4kg min, max 22kg flour

Dimensions: Flat Line 30: 482 x 841 x 850 mm; Flat Line 40: 532 x 841 x 850 mm

Weight: FL30: 160 kg; FL40: 165 kg

Power Supply: 230 V, single phase

Electrical: Under 13 A. Plug not supplied: hardwire to fused spur or fit 13A plug / 16A blue commando. Must be installed & commissioned by a professional.

Due to having the smaller 2.2kW motor take hydration straight up to 60% or further if possible. If straining, reduce capacity or increase hydration until machine is happy.

Motor: 2.2kW single motor, reduced motor size so it draws under 13 A. Plug not supplied.

Controls: Manual (On / Off / Timer)

Variable Speed: 50–300 RPM

Hydration Range: 60–120%

Delivery

In-stock items: Next-day kerbside delivery is available at checkout.

Backordered items: Usually shipped directly from the manufacturer. If you’re not ready to accept delivery when your order is ready to ship, we can arrange for it to come to our York premises first. An additional delivery charge may apply when we send it on to you.

Warranty: 12 months parts & labour (parts-only international). Machine must be professionally installed and commissioned by a competent person.

Downloads

Please see our Sunmix Use, Capabilities & Expectations.
